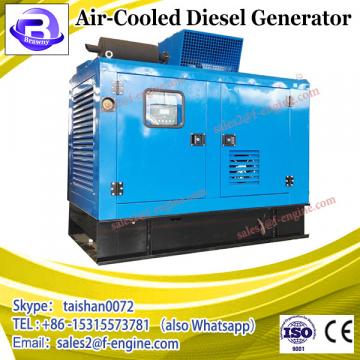

15kva air cooled generator
- KAITONG
KH16000LT3
- Original 15kva air cooled generator
- One set 15kva air cooled generator
- Negotiation
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 138
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
15kva air cooled generator:
Gensets model | KH16000LT3 | |||||||
Rated frequency (Hz) | 50 | |||||||
Rated output power (kVA) | 15 | |||||||
Standby power (KVA) | 16.5 | |||||||
Rated voltage (V) | 400/230 | |||||||
Rated current (A) | 21.6 | |||||||
Phase No. | 3 | |||||||
Power factor | 0.8 (lag) | |||||||
Insulation | F | |||||||
Pole No. | 2 | |||||||
Exciting way | Brush, exciting-self voltage-constant (with AVR) | |||||||
Panel type | General | |||||||
Output socket | Three-phase socket, single-phase socket | |||||||
DC12V output | 12V, 8.3A | |||||||
Dimensions (L×W×H) (mm) | 1040×660×740 | |||||||
Net weight (kg) | 248 | |||||||
Noise (7m) dB(A) | 70 | |||||||
Structure type | Silent | |||||||
Engine model | R2V910 | |||||||
Type | V-twin, two-cylinder, four-stroke, DI | |||||||
Cylinder No. –bore ×stroke (mm) | 2-88×75 | |||||||
Total displacement (ml) | 912 | |||||||
Compressed ratio | 20.0:1 | |||||||
Cooling way | Air-cooled | |||||||
Lubricating way | Pressure & splashing | |||||||
Starting way | Electric | |||||||
Fuel used | 0 # (summer ) -10 # (winter) -35 # (cold winter) light diesel | |||||||
Oil used | SAE10W30 (CD grade above) | |||||||
Lubricating oil capacity (L) | 1.7 | |||||||
Starting motor capacity (V-kW) | 12V 1.4kW | |||||||
Dynamo capacity (V-A) | 12V 8.3A | |||||||
Battery capacity (V-Ah) | 12V 45AH | |||||||
Fuel consumption under full loading (L/H) | 4.8 | |||||||
Fuel tank capacity (L) | 21 |
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 15kva air cooled generator adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 15kva air cooled generator also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
JSHFDKJ
