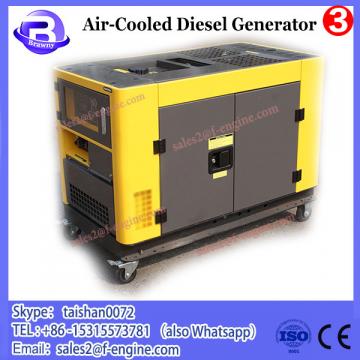

5KW Air Cooled Generator Set
- [标签:pinpai]
OEM
- Original 5KW Air Cooled Generator Set
- One set 5KW Air Cooled Generator Set
- Negotiation
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 69
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
5KW Air Cooled Generator Set
Features:
- o Extreme Power with CN-Power's 9 HP Diesel Engine
- o Single Phase 240V AC + 12V DC
- o Fail Safe Overload / Low Oil / Over Temp engine protection
- o Electric / Remote Start (optional) - with 24AH/12V self-charging battery
- o Optional ATS offers Direct Domestic Connection**
- o CE,ISO, Approvals
MODEL | CND6500T | |
Rated frequency (Hz) | 50 | 60 |
Rated voltage(V) | 115/230 | 120/240 |
Rated current(A) | 39.1/19.6 | 41.7/20.8 |
Rated output power(kva) | 4.5 | 5 |
Max.output(kVA) | 5 | 5.5 |
Rated rotation speed(rpm) | 3000 | 3600 |
Phase number | Single phase | |
Power factor (cos 1 | | |
Insulation Grade | B | |
Pole number | 2 | |
Excitation Mode | Self-excitation & Constant voltage (AVR) | |
Panel type | General Panel | |
Voltage(V) | 115/230 | 120/240 |
Receptacle | Two receptacles | |
Connection pole | Without | |
DC12V output | Connection pole output | |
Noise level[d8(A)@7m] | 72 | |
Structure type | silent | |
Engine model | CD186FAE | |
Engine type | Single cylinder,4-stroke,air-cooled, | |
direct injection, diesel engine | ||
Displacement[ml(cu.in)] | 418(25.51) | |
Rated power [kW(Hp)/rpm] | 5.9(8.02)/3000 6.5(8.84)/3600 | |
Compression ratio | Pressure splashed | |
Starting system | Recoil & Electric Starter | |
Fuel | 0# (summer) -10# (winter) light diesel oil | |
Lube | SAE10W30(above CC grade) | |
Capacity of cooling water (L) | no | |
Lube capacity(L) | 1.65 | |
Starting motor capacity(v-kW) | 12V0.8kW | |
Charging generator capacity(V-A) | 12V 3A | |
Battery capacity(V-Ah) | 12V 36Ah | |
Fuel consumption(g/kW.h) | ≤360 | |
Fuel capacity[L(gal.)] | 15(3.3) |
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 5KW Air Cooled Generator Set adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 5KW Air Cooled Generator Set also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
JSHFDKJ
