24V Electric Start portable small diesel generator
- HT POWER
KDF6500XE
- Original 24V Electric Start portable small diesel generator
- One set 24V Electric Start portable small diesel generator
- Negotiation
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 153
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Product Description
Features of small diesel generator:
1) CE certification.
2) Strong power .
3) All generator sets are equipped with KDF four-stroke engines.
4) Low noise running.
5) High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine
sounds which are contained by a double-wall structure and absorbed by a liner.
6) Digital control panel.
7) All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time working data of the
generator set such as its output voltage and current etc.
8) Besides, the running trouble of the generator will also be displayed on the panel.
Detailed parameters of small diesel generator:
| Model No | KDF6700X/XE | |
| Rated Frequency(Hz) | 50 | 60 |
| Rated Rotation Speed(rpm) | 3000 | 3600 |
| DC Output(V.A) | 12V,8.3A | 12V,8.3A |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415 | |
| Rated Output Power(KVA) | 4.5 | 5 |
| Max Output Power(KVA) | 5 | 5.5 |
| Power Factor cosΦ | 1/0.8 | 1/0.8 |
| Phase Number | Single /Three | |
| Excitation Transistorized | AVR Type OR Self-Excitation,brushless | |
| Structure Type | Open frame | |
| Fuel Consumption(g/KW.h) | 340 | |
| Fuel Tank Capacity(L) | 12.5 | |
| Continuous Runing Time(hr) (at Rated Power) |
7 | |
| Noise Level(Dba@7m) (Zero Load~Full Load) |
75~79 | |
| Starting System | X: Recoil Starter;XE:Electric Starter | |
| Fuel Type | 0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel Oil | |
| Lube | SAE10W30(Above CD Grade) | |
| Engine model | X:KD186FA | |
| XE:KD186FAE | ||
| Engine Type | 1-Cylinder,4-Stroke,Air Cooled, Vertical, Diesel Engine | |
| BorexStroke(mm) | 86x72 | |
| Displacement(cc) | 418 | |
| Compression ratio | 19:01 | |
| Rated Power(KW/rpm) | 5.8/3000 | 6.3/3600 |
| Optional Standard | ATS | |
| Remote Control | ||
| Three Phase | ||
| Wheel and Handle | ||
| Net Weight(Kg) | X:95 | XE:100 |
| Overall Dimension(mm)(LxWxH) | 710x495x620 | |

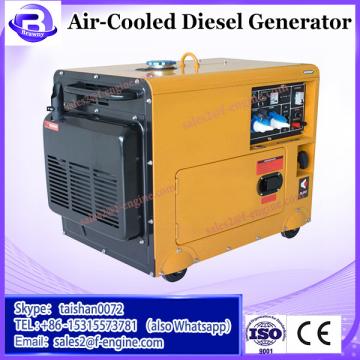

Photos of small diesel generator:
Packaging & Shipping
1) Shipment by FCL or LCL.
2) Delivery time: 7-10 working days after receiving the deposit.
3) Package: Carton package.
Our Services
1)) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and 24V Electric Start portable small diesel generator times.
3) Widely power range from 2KW to 1200KW.
4) Provide debugging and maintenance service to you.
5) Professional 8 Hours testing for Generator before shipment.
6) 1500 hours warranty on the spare parts free provide & technical support in machine life.
Our Certification
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 24V Electric Start portable small diesel generator adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 24V Electric Start portable small diesel generator also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
JSHFDKJ
