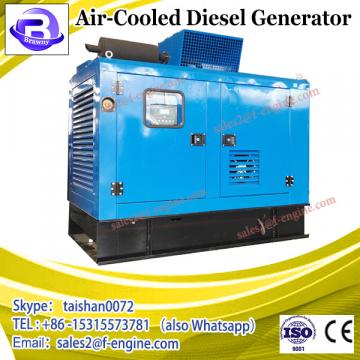

5KVA AIR COOLED DIESEL GENERATOR

  • air-cooled diesel generator
  • air-cooled diesel generator

  • China
  • One set 5KVA AIR COOLED DIESEL GENERATOR
  • [email protected]
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 166
Contact NowChat Now
Shandong Brawny Industrial Co.,Ltd

Shandong Brawny Industrial Co.,LtdChina

  • Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
    Welcome to my shop! Glad to serve you! Please send your question!
Price Inspection Certificate Product Specifications Company Profile

Product Description

* Specifications
Model YM4000T YM7000T YM8000T YM9000T YM10000T
Rated frequency 50 60
Rated output(kVA) 2.8 3.0 4.5 5.0 4.8 5.0 5.2 5.5 5.5 5.8
Max. output(kVA) 3.0 3.2 5.0 5.5 5.0 5.2 5.5 5.8 5.8 6.2
Rated Voltage(V) 230 or as requested
Rated current (A) 24.3/12.2 19.6 21.7 23.9 26
Rated rotation speed(r/min) 3000 3600
Phase NO. Single phase
Power factor(Cos Φ) 1
Insulation Grade B
Pole number 2
Excitation mode Self-excitation & constant voltage (AVR)
Panel Type General Panel
Voltage(V) 230 or as requested
Receptacle Two receptacles
Connection pole Without
DC12V output Connection pole output
Overall dimension(L×W×H)mm 930×530×740 930×530×740 930×530×740 930×530×740 930×530×740
Dry weight(kg) 164 170 171 171 172
Working assorting weight 179 185 186 186 187
Noise level(7m)dB(A) 72
Structure type Silent type
Engine Model YM178FAG YM186FAG YM188FBG YM190FG YM192FG
Engine Type Single cylinder, vertical, four-stroke, direct injection
Cylinder NO.-bore×stroke(mm) 1-78×62 1-86×72 88×74 1-90×74 1-92×75
Displacement(ml) 296 418 0.497 542 548
Rated power[KW/(r/min)] 3.68/3000 5.7/3000 7.3/3000 7.5/3000 8.0/3000
Compression ratio 20:01 19:01 19:01 19:01 19:01
Rated rotation speed(r/min) 3000 3000 3000 3000 3000
Cooling system Air cooled
Combustion system Direct injection
Starting system Electric starter
Fuel type 0#(summer)-10#(winter)-35#(chillness)diesel
Lube oil brand CD grade or SAE10W-30,15W-40
Lube capacity(L) 1.1 1.65
Starting motor capacity( V-kW) 12V 0.8kW
Charging generator capacity ( V-A) 12V 3A
Battery capacity(v-Ah) 12V 30-36Ah
Fuel consumption(g/kw.h) ≤360
Fuel tank capacity(L) 15
Continuous running time(hr) 8 6

Product Description

* Easy and quick start

* No smoke

* Less vibration and full capacity

* New AVR(Automatic Voltage Regulation),Stablizes the output power

* Low oil level alarming system will automatically stop the generator when lube oil is less than the set value



Features

Strong Power

All generator sets are equipped with YARMAX four-stroke engines.

Low Noise Running

High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.

Low Oil Alarm System

Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.

Application of New AVR

The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protection against the overload of the whole set, thus avoid damage to the set.

Advanced Alternator Winding

Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.

Our Services

The best quality

The most competitive price

Long term spare parts supply

Warranty

One and half year or 1500 hours which comes first

Advantages

1) Economic,

2) Stable power,

3) High quality

Company Information

Since 2007 5KVA AIR COOLED DIESEL GENERATORzhou Yarmax Power Co,. Ltd specialized in the ultimate power solution, research, design and production of Engines, Power Generators and Water Pumps with the state of art of the technology and unique design.

We only 5KVA AIR COOLED DIESEL GENERATOR on the great goal to be the power expert by your side.

YARMAX Power. Power The World !

Our main products including Air Cooled Diesel Engine, Air Cooled Diesel Generators, Welding Generators, Water Pumps and Water Cooled Diesel Generator from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.

Moreover, we fully carry out quality management system and strictly enforce the management system of ISO9001; 2000 and CE.We keep seeking researching and producing new variety of products with our very skillful professional team of technicians and workers. Our products have good reputation and goodwill in both local and international market.

We encourage the participation of all our staff members to reply on quality, development and creativity. We also strictly follow the valuable feedback of our valuable customers and agents.

We are looking forward to co-work with overseas companies based on mutual benefits and provide the best service to the world !

The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 5KVA AIR COOLED DIESEL GENERATOR adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 5KVA AIR COOLED DIESEL GENERATOR also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
