With Cooling Fan!!! Haiwe Air Cooled Electric Start 50/60Hz Single Phase Portable Silent Diesel Generator 5KW
- air-cooled diesel generator
air-cooled diesel generator
- China
- One set With Cooling Fan!!! Haiwe Air Cooled Electric Start 50/60Hz Single Phase Portable Silent Die
- [email protected]
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 157
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Product Summary

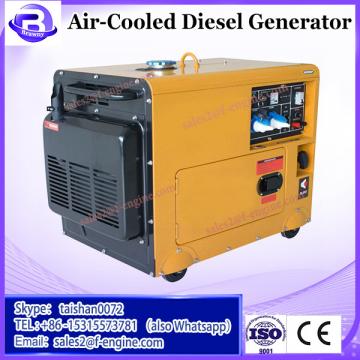

This HAIWE HDG5000BSE Silent Lift-lid Type Diesel Generator is easy to use in a variety of applications and offers affordable reliability. Powered by a 4-stroke, air-cooled HAIWE diesel engine 418cc, the HDG5000BSE has a maximum output of 5kW. It features the same AVR alternator which produces stable energy, enabling safe use of this generator with sensitive electronic equipment such as televisions, laptops, PCs and more. Although it won’t be able to run everything it allows more essential home items to continue running in the event of a power cut when the National Grid fails. The Lift-lid design makes the maintenance job much easier than any others.
| Model No.: | HDG5000BSE | ||
| Rated Frequency: | 50/60Hz | ||
| Rated Voltage: | 110V, 120V, 220V, 230V, 240V, 110/220V, 120/240V | ||
| Rated Power: | 4.5KW | ||
| Max. Power: | 5.0KW | ||
| DC output: | 12V 8.3A | ||
| Control Panel: | Key Starter, Volt. meter, Oil Alert Lamp, Circuit Breaker, Power outlets | ||
| Engine Type: | Diesel, Air-cooled, Single cylinder, 4-stroke, 418cc | ||
| Engine Model: | HD186FAE | ||
| Engine Power: | 10HP | ||
| Bore x Stroke: | 86mm x 72mm | ||
| Engine Speed: | 3000RPM/3600RPM | ||
| Alternator Model: | HAC-5 | ||
| Alternator Type: | Single phase, 2-pole, Self-excited, Brush with AVR, Insulation class F | ||
| Power Factor: | 1 | ||
| Starting Method: | Electric/Key Start with Battery | ||
| Starting Battery: | Maintenance-free Sealed Lead Acid Battery 12V 30Ah | ||
| Heat Radiation: | Cooling Fan | ||
| Fuel Tank Capacity: | 15L | ||
| Fuel Consumption: | 1.75L/ Hour @Full Load | ||
| Noise Level: | 70 dBA @ 7 meters | ||
| Dimensions (LxWxH): | 950mm x 570mm x 770mm | ||
| Net Weight: | 165Kgs | ||
| Gross Weight: | 170Kgs | ||
Sound Attenuated Housing
Housed in “silent” casing, the HDG5000BSE is a very quiet machine and won’t disturb you, your family or your employees when powering your building. With a sound rating of 70dB @ 7 metres you will seldom hear the generator while it’s at work.
Diesel Engine
Air cooled, 4- stroke, Diesel Engine of high performance and super reliablity.
Model: HD186FE
Brand: HAIWE
Power: 10HP
Displacement: 418 cc
Control Panel
Customized Available!!!
Standard configuration:
Key Starter, Volt. meter, Oil Alert Lamp, Circuit Breaker, Power outlets
Note:
* Working Hour Counter can be added to the panel.
* The power outlets and voltages can be made as per your requirments.
Lift-Lid Design
- Easier refueling- Faster heat radiation- Easier checking the status of running- Easier maintenance: filters replacement etc.The lift-lid design can be a selling point to overpass all the other coomonly designed diesel generators.
Packing & Delivery
| Packaging | |
| Size (mm) | 950 (L) * 570 (W) * 770 (D) |
| Gross Weight | 170 Kgs |
| Packaging Details |
1) Inner Packaging: Polybag 2) Outer Packaging: Polywood crate 3) Wrapping tape |
ATS (Auto Transfer Switch)
When the ATS module detects a loss of power from the mains supply it simply powers your generator up automatically, then shuts it off when it detects power returning from the mains.Remote Starter
With a remote controller, you can start or turn off the generator within a distance of 100meters.
Digital LCD panel
All the parameters of the generator such as Volt., KW and Hz will be shown on the LCD.
Certifications
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our With Cooling Fan!!! Haiwe Air Cooled Electric Start 50/60Hz Single Phase Portable Silent Diesel Generator 5KW adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, With Cooling Fan!!! Haiwe Air Cooled Electric Start 50/60Hz Single Phase Portable Silent Diesel Generator 5KW also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
JSHFDKJ
