165KVA diesel generating set for sale 3 phase diesel genset

165KVA diesel generating set for sale 3 phase diesel genset

Detail specs of 130KW diesel generator set 50Hz as follows:

Genset Model	PC-130GF
Prime Power	130KW/165KVA
Rated Voltage	400/230V
Frequency	50/60Hz
Power Factor	0.8(lagging)
Dimension (L×W×H) (mm)	2570*950*1550
Genset weight (kg)	1490
Engine Model	6CTA8.3-G2
Number of Cylinders	6
Rotating Speed	1500/1800RPM
Cycle	Four stroke
Type	6 cylinders inline
Bore×Stroke(mm)	114*135
Displacement(L)	8.3
Lubricating Capacity(L)	1123.8
Speed Governor	Electrical
Cooling System	Water-cooled
Intake	Turbo
Fuel Consumption at 100% Load	196 g/kw.h
Starting Method	DC24V Electrical starting
Alternator Model	UCI274D
Number of Phase	3
Connecting Type	Three Phase and Four wires
Voltage	380/415 V
Grading Protection	IP23
Steady Voltage Regulation	±1.5%
Exciter Type	Brushless (AVR automatic voltage regulating)
Insulation Class	H degree

Overall description:

1. Water cooled radiator, the fans driven by belt, with safety shield.

2. 24 V Battery charging Alternator

3. Alternator:Single bearing Alternator,IP22 Grading Protection, H Insulation degree

4. Shock absorber

5 Dry air filter,Fuel filter,Oil filter

6. Power output circuit breaker

7. LCD display

8. 24V battery and battery connection cables

9 Exhaust pipe,Corrugated shock tube,flange,Muffler set

10. Maintenance manuals

11. Lubrication System

Basic components of this Genset

*Diesel engine with 3 filters and other accessories

*AC synchronous generator*Water tank & radiator assembly*The cooling fan and fan guard*Heavy duty steel channel base frame*Genset control system*Genset circuit breaker*24V DC starting motor and charging alternator*Vibration-damping supports between engine/alternator and the base frame*Base fuel tank for 8 hours operation Standard accessory list 1.Fuel connecting pipes 1 set2.12V DC dry type battery c/w battery cables 2 sets3.Industrial type silencer c/w stainless steel flexible exhaust bellows 1 set4.Shock absorption rubbers 4 pcs5.The tool kit and 1 set of manuals (English version). Operating conditions of generator set 1.Altitude: ≤1500 m.2.Ambient Temperature: -15℃~50℃ .3.Relative air humidity: ≤90% .4.The site can't has electric conduction dust and corrosive gas that destroies metal insulation.5.The site can't has explosion danger. We make and export different type of diesel generator sets: 1. Open type 2. Rain proof and silent canopy 3. Trailer type
4. Containler type

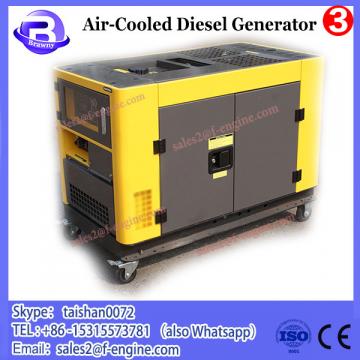

The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 165KVA diesel generating set for sale 3 phase diesel genset adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 165KVA diesel generating set for sale 3 phase diesel genset also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
