Home>Products>silent diesel generator set>5kva silent trailer wheel diesel generator set

English
English
  • 5kva silent trailer wheel diesel generator set
  • 5kva silent trailer wheel diesel generator set
  • 5kva silent trailer wheel diesel generator set
  • 5kva silent trailer wheel diesel generator set
  • 5kva silent trailer wheel diesel generator set
  • 5kva silent trailer wheel diesel generator set

5kva silent trailer wheel diesel generator set

  • silent diesel generator set
  • silent diesel generator set

  • China
  • One set 5kva silent trailer wheel diesel generator set
  • [email protected]
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 140
Contact NowChat Now
Shandong Brawny Industrial Co.,Ltd

Shandong Brawny Industrial Co.,LtdChina

  • Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
    Welcome to my shop! Glad to serve you! Please send your question!
Price Inspection Certificate Product Specifications Company Profile

Product Description

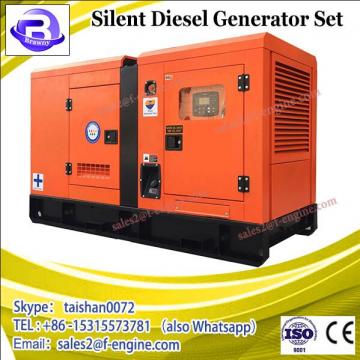

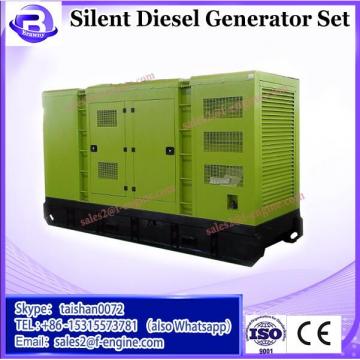

5kva silent trailer wheel diesel generator set

Alternator

Model

EF6500

EF7500

Maximum output power(kw)

5.5

6.5

Rated output power(kw)

5

6

Rated voltage(V)

220/380

Rated frequency (Hz)

50

Rated speed(RPM)

3000

Phase number

Single-phase / three-phase

Power factor

1.0/0.8

Ignition system

Direct injection

Excitation mode

AVR automatic voltage regulator

Engine

Model

186F

188F

Engine type

Single cylinder/four stroke
/forced air cooled/top mounted valve

Displacement(CC)

410

456

Bore*stroke(mm)

86*72

88*75

Oil capacity(L)

1.5

Oil model

Class CD above or SAE10W-30 /15W-10

Fuel model

Diesel 0# (summer)
Diesel 10# (winter)
Diesel 35# (Severe cold)

Start-up mode

Electrical startup

Subsidiary
configuration

Fuel capacity(L)

20

warning device

Yes

Fuel indicator

Yes

Battery capacity

12V-14HA maintenance free battery

Output connection mode

Plug / terminal (three-phase)

Other

Fuel oil consumption(L)

2.5

2.8

Continuous working time(H)

8

Noise level Dba/7m

80

Control panel

Voltage display meter

Random tools

Plug/manual/certificate of quality

Casters accessories

Standard

Overall dimension(L*w*h)mm

960*560*770

Weight(kg)

120

130

Adaptation table

Power consumption of AC electrial products

One machine with multiple uses

home, school, hospital, outdoors, company.....

Packing

silent diesel generator set are usually used in the environments wth stringent requirements for noise such as hospital,school,banks,hotels or other commercial sites.5kva silent trailer wheel diesel generator set The soundproof generator set is made of the standard unit with mute cover.The mute cover can be removed and facilitate the care and maintenance.
HJHBGVK
silent diesel generator set is powered by 1000 series (produced by Tianjin Lovol Diesel Engine Works) diesel engine.The engien has the feature of good power performance,safety ,5kva silent trailer wheel diesel generator set low fuel consumption and good reliablility ,silent diesel generator set generator set is widely used as prime or standby power supply in national defence ,telecommunication,fieldwork,building,supermarket ,industril and mining factory ,oil field ,highway,harbour and so on.
